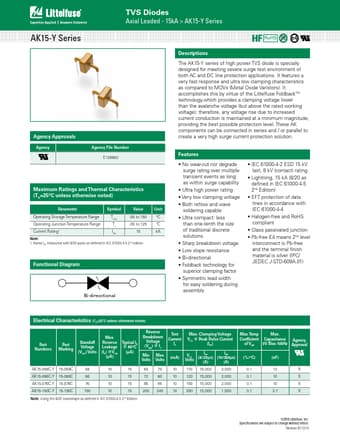

AK15-058C-Y - TVS Diodes
TVS Diodes Axial Leaded - 15kA > AK15-Y Series AK15-Y Series RoHS Pb e4 Agency Approvals Agency Agency File Number E128662 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Operating Storage Temperature Range TSTG -55 to 150 Operating Junction Temperature Range TJ -55 to 125 Current Rating1 IPP 15 Note: 1.
Rated IPP measured with 8/20 pulse as defined in IEC 61000-4-5 2nd edition.
Unit °C ºC kA Functional Diagram Bi-direcctional
AK15-058C-Y Features
* a very fast response and ultra low clamping characteristics as compared to MOVs (Metal Oxide Varistors). It accomplishes this by virtue of the Littelfuse FoldbackTM technology,which provides a clamping voltage lower than the avalanche voltage (but above the rated working voltage); therefore, any vol
