BTA16-800CW3G - Thyristors

Product Overview

Littelfuse

📥 Download Datasheet

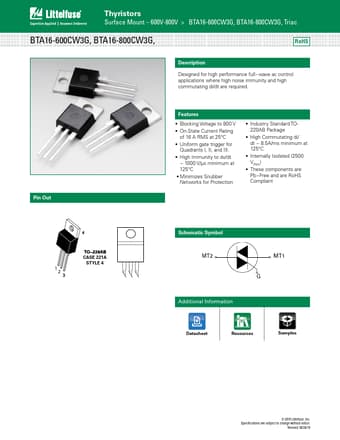

BTA16-800CW3G Thyristors by Littelfuse - Datasheet Preview — Datasheet preview – BTA16-800CW3G

Datasheet Details

Part number	BTA16-800CW3G
Manufacturer	Littelfuse
File Size	459.75 KB
Description	Thyristors
Datasheet	BTA16-800CW3G Datasheet
Note	This datasheet PDF includes multiple part numbers: BTA16-800CW3G, BTA16-600CW3G. Please refer to the document for exact specifications by model.
Additional preview pages of the BTA16-800CW3G datasheet.

Product details

Description

Designed for high performance full wave ac control applications where high noise immunity and high commutating di/dt are required.

Features

Blocking Voltage to 800 V.
On-State Current Rating of 16 A RMS at 25°C.
Uniform gate trigger for Quadrants I, II, and III.
High Immunity to dv/dt.
1000 V/µs minimum at 125°C.
Minimizes Snubber Networks for Protection.
Industry Standard TO220AB Package.
High Commutating di/ dt.
8.5A/ms minimum at 125°C.
Internally Isolated (2500 VRMS).
These components are Pb.
Free and are RoHS Compliant.
