BTB12-600CW3G Datasheet PDF - Littelfuse Thyristors Specs

BTB12-600CW3G - Thyristors

Datasheet Summary

Description

Designed for high performance full-wave ac control applications where high noise immunity and high commutating di/dt are required.

Features

Blocking Voltage to 800 V.
On-State Current Rating of 12 Amperes RMS at 25°C.
Uniform Gate Trigger Currents in Three Quadrants.
High Immunity to dV/dt.
1500 V/µs minimum at 125°C.
Minimizes Snubber Networks for Protection.
Industry Standard TO220AB Package.
High Commutating dI/dt.
3.0. A/ms minimum at 125°C.
These are Pb.
Free Devices Functional Diagram MT 2 MT 1 G CASE 221A STYLE 4 12.

Datasheet Details

Part number	BTB12-600CW3G
Manufacturer	Littelfuse
File Size	403.49 KB
Description	Thyristors
Datasheet	BTB12-600CW3G Datasheet
Additional preview pages of the BTB12-600CW3G datasheet.

📁 Similar Datasheet

BTB12-600CW3G - Triacs Silicon Bidirectional Thyristors (ON Semiconductor)

BTB12-600CW - 12A TRIACS (ST Microelectronics)

BTB12-600CW - Three quadrant triacs (HAOPIN)

BTB12-600CW - Triac (INCHANGE)

BTB12-600C - 12A TRIACS (TGS)

BTB12-600C - 12A TRIACS (ST Microelectronics)

BTB12-600C - Triac (INCHANGE)

BTB12-600 - 12A TRIACS (ST Microelectronics)

BTB12-600 - 3Q TRIAC (JCET)

BTB12-600 - Triac (BLUE ROCKET ELECTRONICS)

Full PDF Text Transcription

Click to expand full text

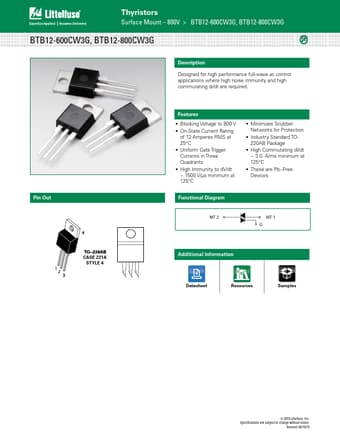

Thyristors Surface Mount – 800V > BTB12-600CW3G, BTB12-800CW3G BTB12-600CW3G, BTB12-800CW3G Pb Description Designed for high performance full-wave ac control applications where high noise immunity and high commutating di/dt are required. Pin Out Features • Blocking Voltage to 800 V • On-State Current Rating of 12 Amperes RMS at 25°C • Uniform Gate Trigger Currents in Three Quadrants • High Immunity to dV/dt − 1500 V/µs minimum at 125°C • Minimizes Snubber Networks for Protection • Industry Standard TO220AB Package • High Commutating dI/dt − 3.0. A/ms minimum at 125°C • These are Pb−Free Devices Functional Diagram MT 2 MT 1 G CASE 221A STYLE 4 12 Additional Information Datasheet Resources Samples © 2019 Littelfuse, Inc.
