D8025LTP, D8015L Rectifier

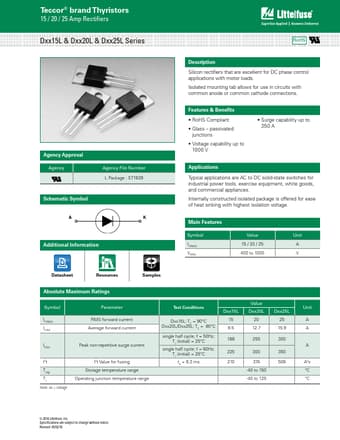

📥 Download Datasheet  Datasheet Preview Page 1

Description

Teccor® brand Thyristors 15 / 20 / 25 Amp Rectifiers Dxx15L & Dxx20L & Dxx25L Series RoHS Agency Approval Agency Agency File Number L Package : E71.
Silicon rectifiers that are excellent for DC phase control applications with motor loads.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D8025LTP, D8015L. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
D8025LTP, D8015L
Manufacturer
Littelfuse ↗
File Size
492.95 KB
Datasheet
D8015L-Littelfuse.pdf
Description
Rectifier
Note
This datasheet PDF includes multiple part numbers: D8025LTP, D8015L.
Please refer to the document for exact specifications by model.

Features

* & Benefits
* RoHS Compliant
* Glass
* passivated junctions
* Voltage capability up to 1000 V
