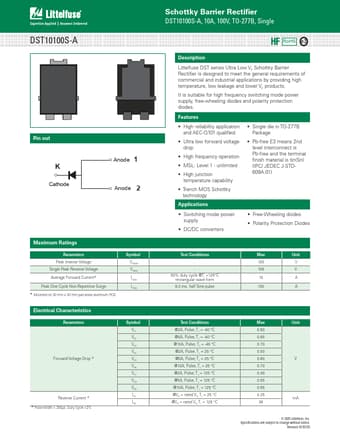

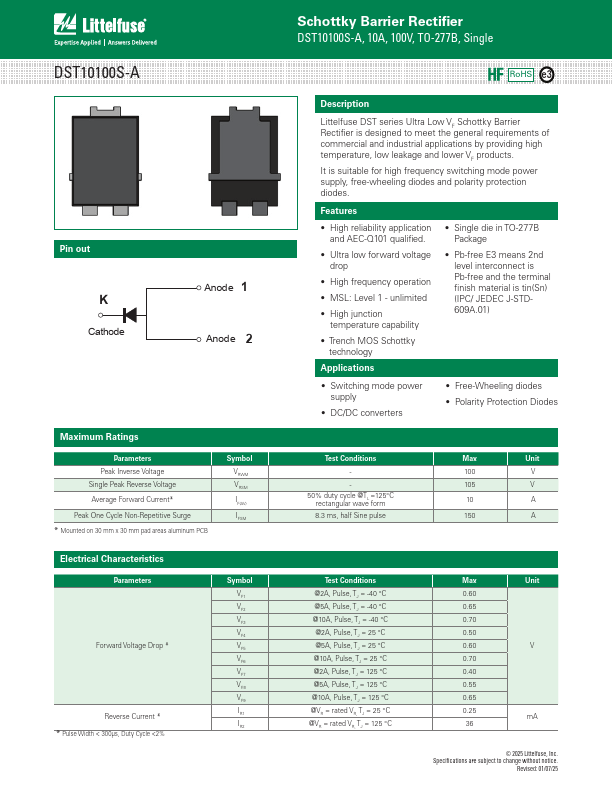

DST10100S-A Schottky Barrier Rectifier

Littelfuse DST series Ultra Low VF Schottky Barrier Rectiﬁer is designed to meet the general requirements of commercial and industrial applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes a.

DST10100S-A Pin out K Cathode Anode 1 Anode 2 Maximum Ratings Parameters Peak Inverse Voltage Single Peak Reverse Voltage Average Forward Current Peak One Cycle Non-Repetitive Surge Mounted on 30 mm x 30 mm pad areas aluminum PCB Symbol VRWM V RSM IF(AV) IFSM Electrical Characteristics Parameters Forward Voltage Drop Reverse Current Pulse Width < 300μs, Duty Cycle <2% Symbol VF1 V F2 VF3 V F4 VF5 V F6 VF7 V F.8 VF9 I R1 IR2 Schottky Barrier Rectiﬁer DST10100S-.

DST10100S-A Features

* High reliability application and AEC-Q101 qualiﬁed.

* Ultra low forward voltage drop

* High frequency operation

* MSL: Level 1 - unlimited

* High junction temperature capability

* Trench MOS Schottky technology Applications

* Single die in
