DST1045S-A

Schottky Barrier Rectifier

DST1045S-A Features

* Ultra low forward voltage drop

* High frequency operation Schottky technology

* Single die in TO-277B Package

* High junction temperature capability

* High reliability application and AEC-Q101 qualified

* Trench MOS Barrier Applications

DST1045S-A General Description

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of automotive applications by providing high temperature, low leakage and low VF products. It is suitable for high frequency switching mode power supply applications, as free-wheeling and polar.

DST1045S-A Datasheet (771.92 KB)

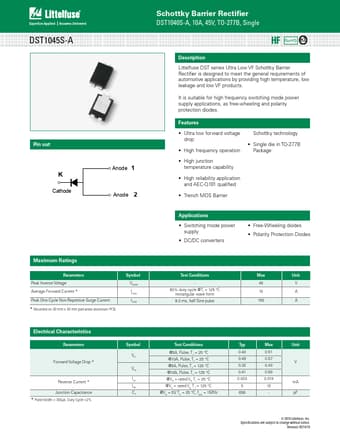

Preview of DST1045S-A PDF

Datasheet Details

Part number:

DST1045S-A

Manufacturer:

Littelfuse ↗

File Size:

771.92 KB

Description:

Schottky barrier rectifier.
