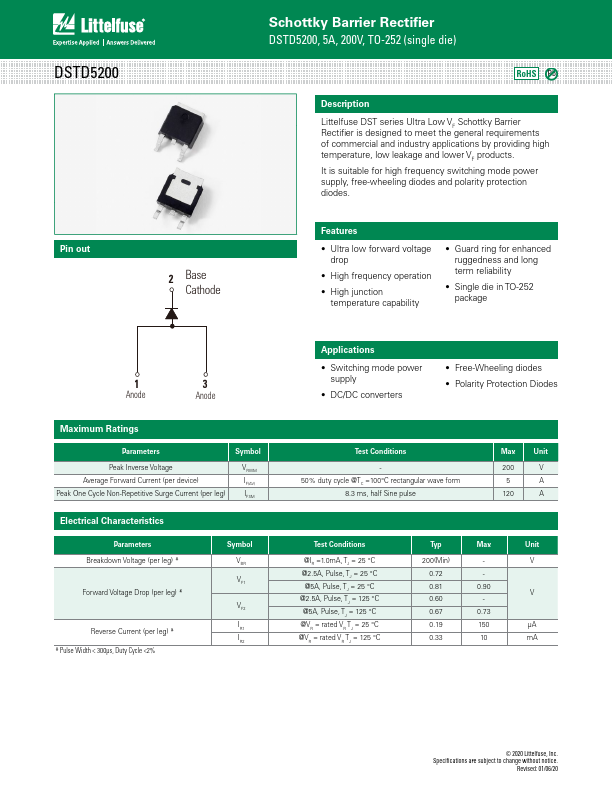

DSTD5200
Description
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of mercial and industry applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
Features
- Ultra low forward voltage drop
- High frequency operation
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Single die in TO-252 package
Anode
Anode
Maximum Ratings
Parameters
Symbol
Peak Inverse Voltage Average Forward Current (per device) Peak One Cycle Non-Repetitive Surge Current (per leg)
VRWM IF(AV) IFSM
Electrical Characteristics
Parameters Breakdown Voltage (per leg)
- Forward Voltage Drop (per leg)
- Reverse Current (per leg)
- - Pulse Width < 300μs, Duty Cycle <2%
Symbol VBR VF1
VF2 IR1 IR2
Applications
- Switching mode power supply
- DC/DC converters
-...
