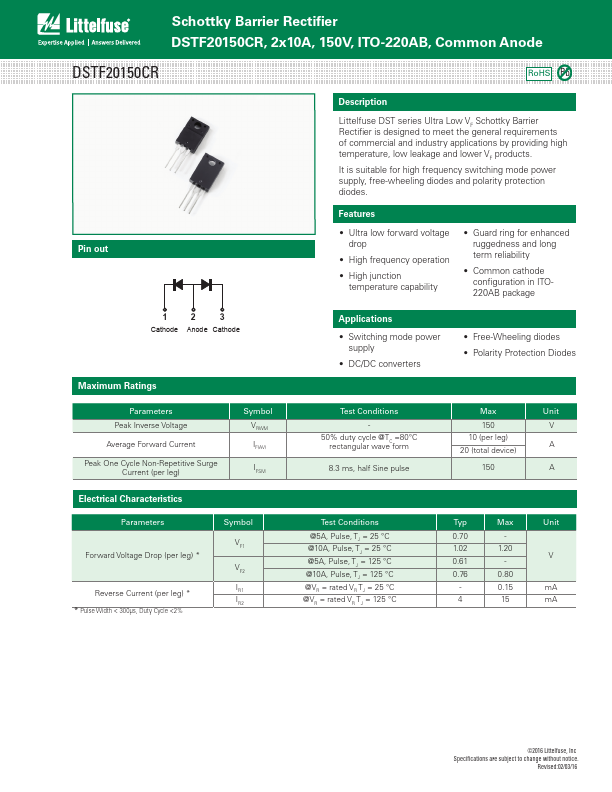

DSTF20150CR
Description
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of mercial and industry applications by providing high temperature, low leakage and lower VF products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
Features
- Ultra low forward voltage drop
- High frequency operation
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- mon cathode configuration in ITO220AB package
Applications
- Switching mode power supply
- DC/DC converters
- Free-Wheeling diodes
- Polarity Protection Diodes
Test Conditions
- 50% duty cycle @TC =80°C rectangular wave form
8.3 ms, half Sine pulse
Max 150 10 (per leg) 20 (total device)
Unit V A
Electrical Characteristics Parameters
Forward Voltage Drop (per leg)
- Reverse Current (per leg)
- - Pulse Width < 300μs, Duty Cycle <2%
Symbol VF1
VF2 IR1 IR2

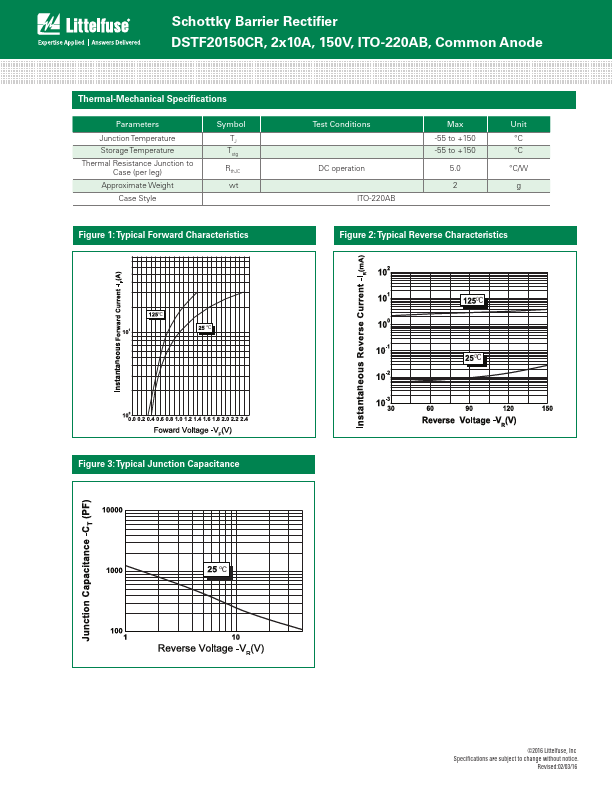

Test...
