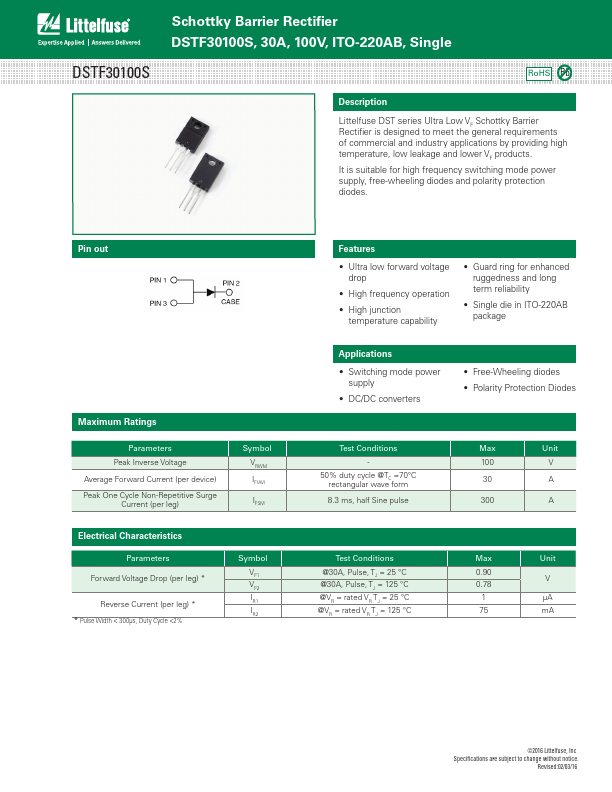

DSTF30100S
Description
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of mercial and industry applications by providing high temperature, low leakage and lower VF products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
Pin out
Maximum Ratings
Parameters Peak Inverse Voltage Average Forward Current (per device) Peak One Cycle Non-Repetitive Surge
Current (per leg)
Symbol VRWM IF(AV)
IFSM
Electrical Characteristics Parameters
Forward Voltage Drop (per leg)
- Reverse Current (per leg)
- - Pulse Width < 300μs, Duty Cycle <2%
Symbol
VF1 VF2 IR1 IR2
Features
- Ultra low forward voltage drop
- High frequency operation
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Single die in ITO-220AB package
Applications
- Switching mode power supply
- DC/DC converters
- Free-Wheeling diodes
- Polarity Protection...
