Description
Circuit Diagram
Base Common Cathode
2
1 Anode
Maximum Ratings
3 Anode

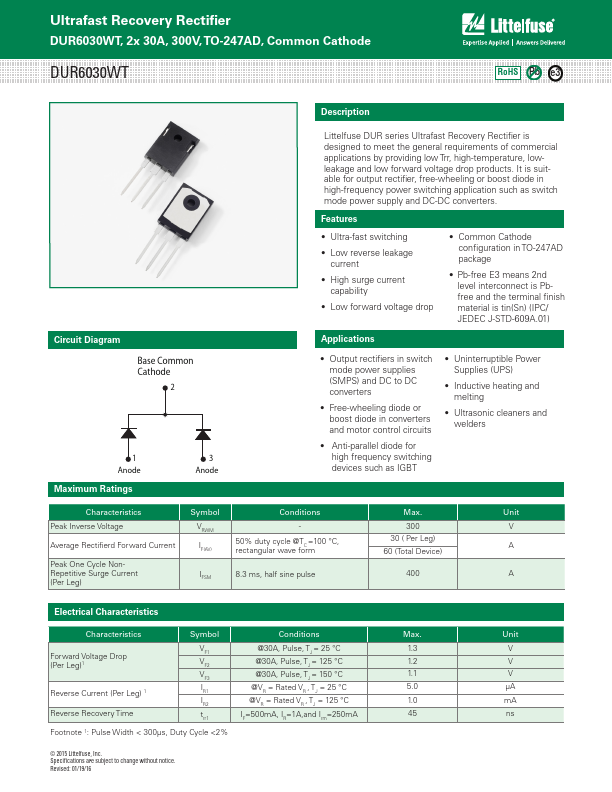

Littelfuse DUR series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, lowleakage and low forward voltage drop products.It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
Features
- Ultra-fast switching.
- Low reverse leakage current.
- High surge current capability.
- Low forward voltage drop.
- Common Cathode configuration in TO-247AD package.
- Pb-free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01).

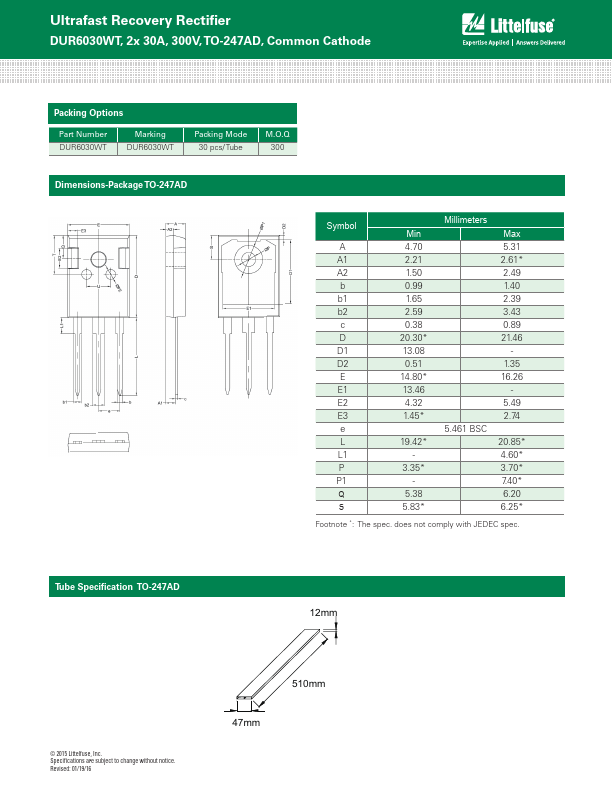

DUR6030WT-Littelfuse.pdf
