DURF3060CT Ultrafast Recovery Rectifier

DURF3060CT Description

Ultrafast Recovery Rectifier DURF3060CT, 2x 15A, 600V, ITO-220AB, Common Cathode DURF3060CT RoHS Pb e3 SP3051 .
Littelfuse DUR series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high.

DURF3060CT Features

* Ultra-fast switching
* Low reverse leakage current
* High surge current capability
* Low forward voltage drop

DURF3060CT Applications

* by providing low Trr, high-temperature, lowleakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters. Circuit Diagram Base Common Cathode 1 Ano

📥 Download Datasheet

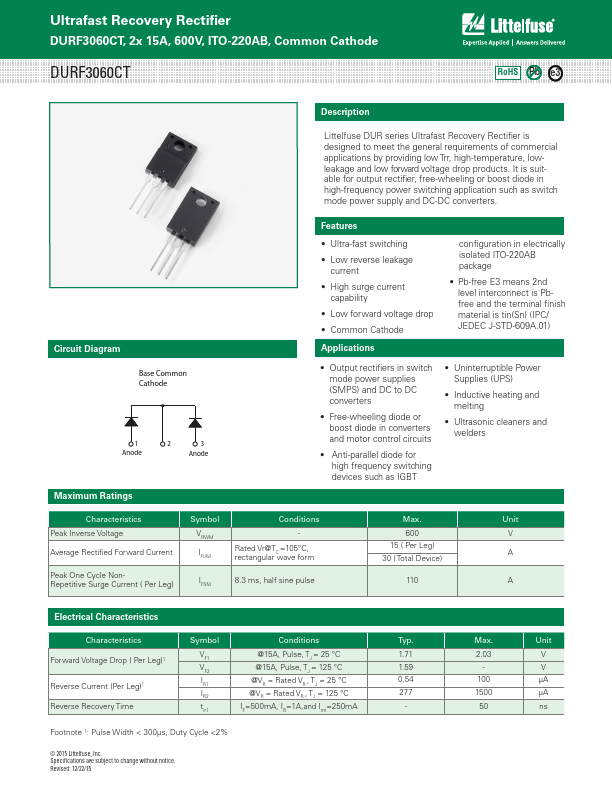

Preview of DURF3060CT PDF

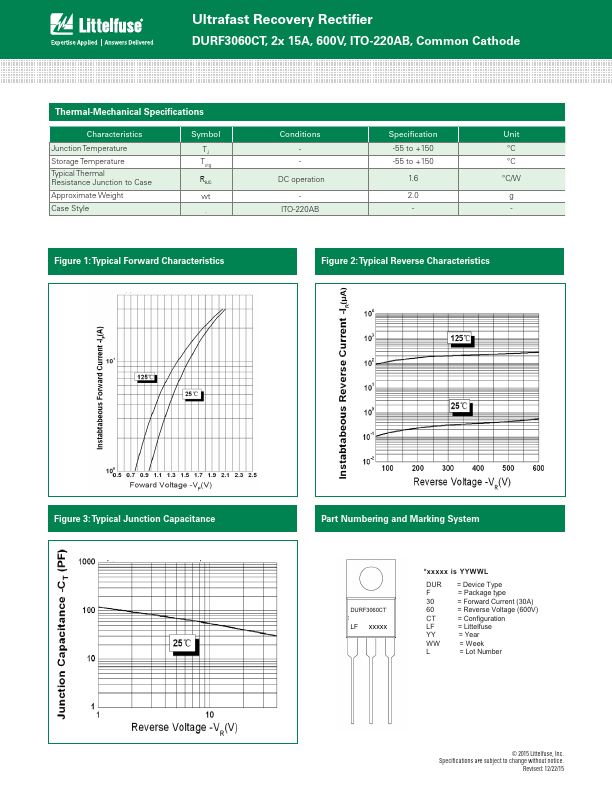

datasheet Preview Page 2 datasheet Preview Page 3
