DURF840 8A 400V Ultrafast Recovery Rectifier

DURF840 Description

Ultrafast Recovery Rectifier DURF840, 8A, 400V, ITO-220AC DURF840 RoHS Pb e3 SP3051 .
Littelfuse DUR series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high.

DURF840 Features

* Ultra-fast switching
* Low reverse leakage current
* High surge current capability
* Low forward voltage drop
* Single die in two-leaded, electrically isolated ITO220AC package
* Pb-free E3 means 2nd level interconnect is Pb-free and the termin

DURF840 Applications

* by providing low Trr, high-temperature, lowleakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters. Circuit Diagram 1 Cathode Maximum Ratings

📥 Download Datasheet

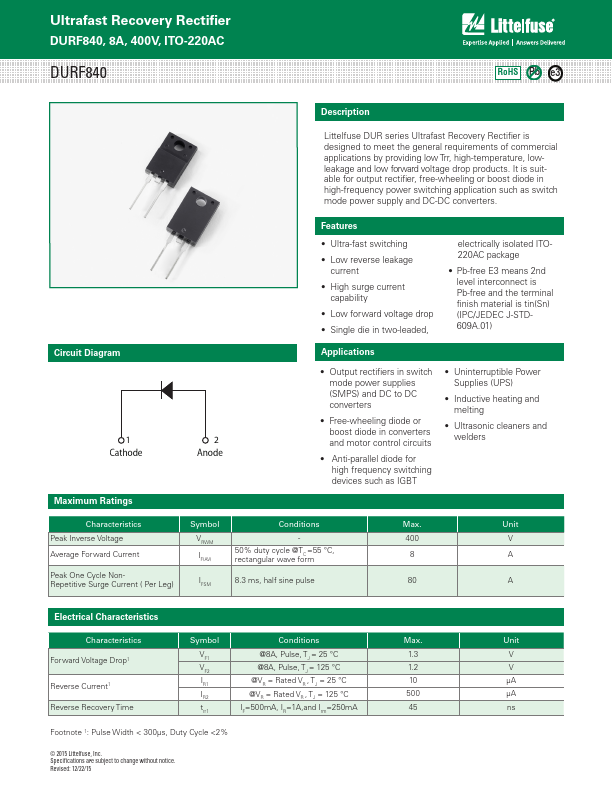

Preview of DURF840 PDF

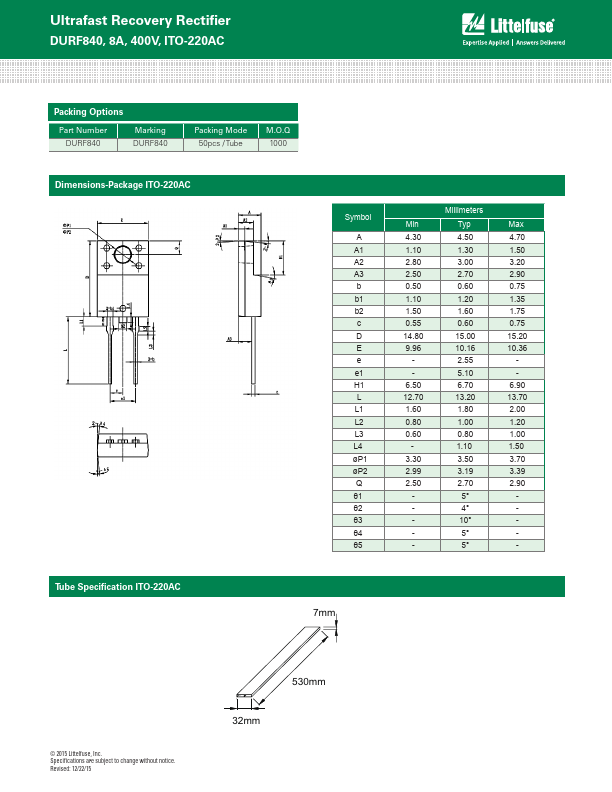

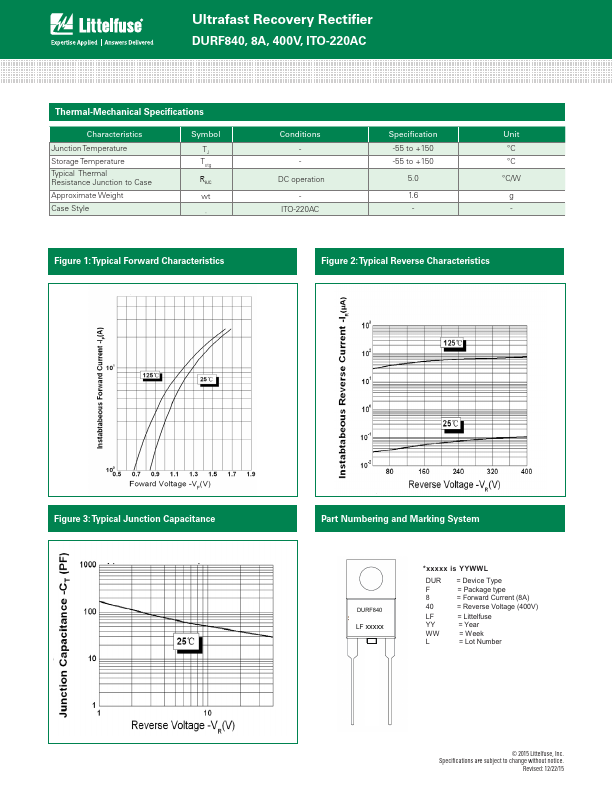

datasheet Preview Page 2 datasheet Preview Page 3
