HE721C2400, HE700, Miniature Dual In-line Reed Relay

Reed Relays DIL Packaged > HE700 HE700 Miniature Dual In-line Reed Relay Agency Approvals Agency Agency File Number E47258 Note: Contact Littelfus.
The HE700 is a miniature reed relay in a DIL package with a choice of normally open, normally open high voltage, normally closed or changeover contact.

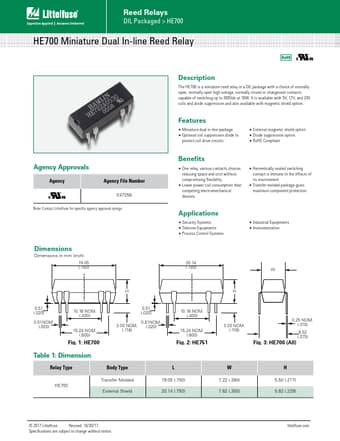

datasheet Preview Page 1 from Datasheet4u.com

HE700-Littelfuse.pdf

HE721C2400 Datasheet Preview — This datasheet PDF includes multiple part numbers: HE721C2400, HE700. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HE721C2400, HE700

Manufacturer:

Littelfuse ↗

File Size:

507.19 KB

Description:

Miniature Dual In-line Reed Relay

Note:

This datasheet PDF includes multiple part numbers: HE721C2400, HE700.
Please refer to the document for exact specifications by model.

Features

* Miniature dual in-line package
* Optional coil suppression diode to protect coil drive circuits
* External magnetic shield option
* Diode suppression option
* RoHS Compliant Benefits
* One relay, various contacts choices reducing space and cost wit

Applications

* Security Systems
* Telecom Equipments
* Process Control Systems
* Industrial Equipments
* Instrumentation 20.14 (.793) W HH 0.51 (.020) 0.51NOM. (.020) 10.16 NOM. (.400) 15.24 NOM. (.600) Fig. 1: HE700 0.51 (.020) 3.00 NOM. (.118) 0.51NOM. (.020) T
