L4006VH4

Triac

L4006VH4 Features

* Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 6 400, 600, 800 or 1000 5 to 50 Unit A V mA Schematic Symbol MT2 MT1 G Additional Information Features & Benefits

* RoHS-compliant

* Glass

* passivated junctions

* Voltage capability up to 1000 V

* Surge cap

L4006VH4 General Description

This 6 Amp bidirectional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Sensitive type components guarantee gate control in Quadrants I & IV as needed for d.

L4006VH4 Datasheet (797.82 KB)

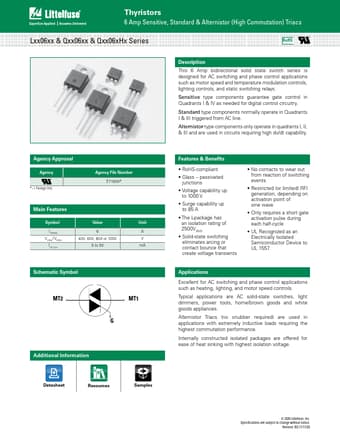

Preview of L4006VH4 PDF

Datasheet Details

Part number:

L4006VH4

Manufacturer:

Littelfuse ↗

File Size:

797.82 KB

Description:

Triac.
