LCF080602A750TG

Common Mode Noise Filter

LCF080602A750TG Features

* Effective for suppressing common mode noise and almost no effect for high speed differential data line

* Differential mode cut-off frequency up to 8.78GHz at -3dB

* Ultra low profile as low as 0.64X0.57X0.35mm

* Ceramic multilayer type SMD component

* Non-p

LCF080602A750TG General Description

Pin 1-3, 2-4 Pin 1-2(Short) to Pin 3-4(Short) Source 10mA DC Source Equipment Source Meter LCR Meter (3GHz) Pin1 Pin2 Pin3 Pin4 Item Rdc CM Impedance Six Lines Pin8 Pin7 Pin6 Pin5 Description Source Pin 1-8, 2-7 3-6, 4-5 10mA DC Source Pin 1-2(Short) to Pin 8-7(Short) Pin 3-4(Short) .

LCF080602A750TG Datasheet (4.74 MB)

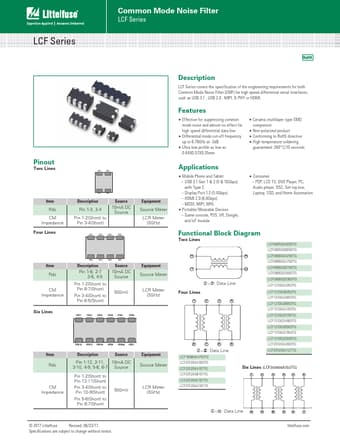

Preview of LCF080602A750TG PDF

Datasheet Details

Part number:

LCF080602A750TG

Manufacturer:

Littelfuse ↗

File Size:

4.74 MB

Description:

Common mode noise filter.
