LSIC2SD065A16A - 650V 16A SiC Schottky Barrier Diode

Datasheet Summary

Description

This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175 °C.

Features

  • AEC-Q101 qualified.
  • Positive temperature coefficient for safe operation and ease of paralleling.
  • 175 °C maximum operating junction temperature.
  • Excellent surge capability.
  • Extremely fast, temperature-independent switching behavior.
  • Dramatically reduced switching losses compared to Si bipolar diodes Circuit Diagram TO-220-2L Case Case 12 1 2 Maximum Ratings Characteristics Repetitive Peak Reverse Voltage DC Blocking Voltage Conti.

📥 Download Datasheet

Datasheet preview – LSIC2SD065A16A

Datasheet Details

Part number LSIC2SD065A16A
Manufacturer Littelfuse
File Size 631.51 KB
Description 650V 16A SiC Schottky Barrier Diode
Datasheet download datasheet LSIC2SD065A16A Datasheet

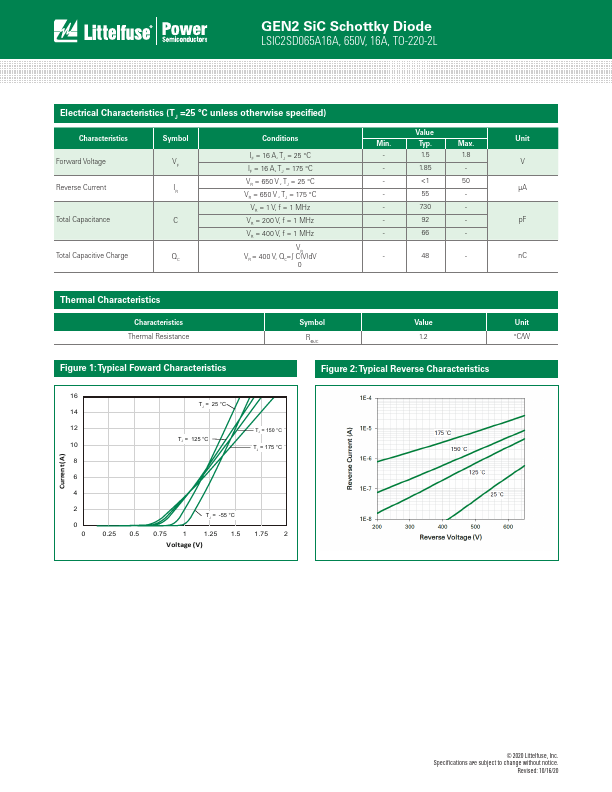

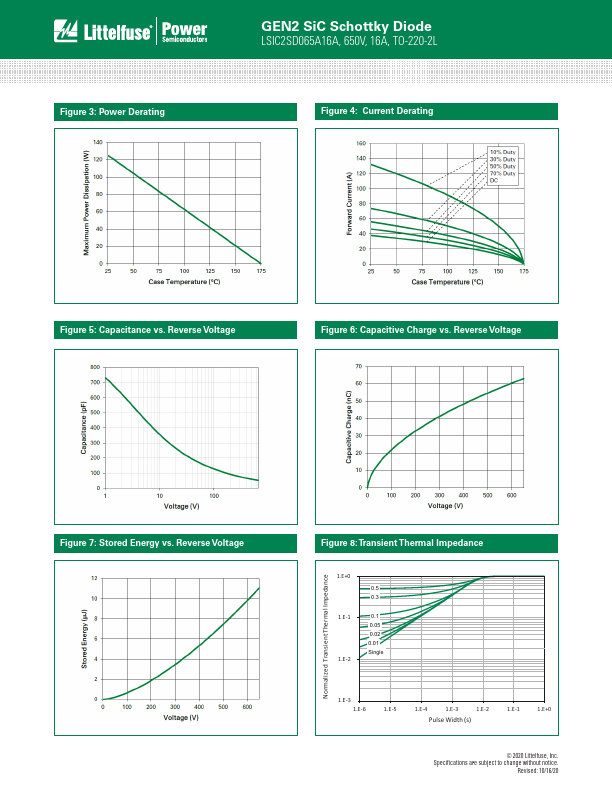

Additional preview pages of the LSIC2SD065A16A datasheet.

📁 Similar Datasheet

  • LSI1012LT1G - N-Channel 1.8-V (G-S) MOSFET (LRC)
  • LSI1012N3T5G - N-Channel 1.8-V (G-S) MOSFET (LRC)
  • LSI1012XT1G - N-Channel 1.8-V (G-S) MOSFET (LRC)
  • LSI1013LT1G - P-Channel 1.8-V (G-S) MOSFET (LRC)
  • LSI1013XT1G - P-Channel 1.8-V (G-S) MOSFET (LRC)
  • LSI1032E - ISPLSI1032E (Lattice Semiconductor)
  • LSI11240 - TOWER TYPE LED LAMPS (LIGITEK electronics)
  • LSI320HN01-0 - TFT LCD (Samsung)
  • LSI53C810A - Pci to Scsi I/o Processor (LSI Logic Corporation)
  • LSI53C825A - Pci to Ultra Scsi I/o Processor Technical Manual (LSI Logic Corporation)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
GEN2 SiC Schottky Diode LSIC2SD065A16A, 650V, 16A, TO-220-2L LSIC2SD065A16A 650 V, 16 A SiC Schottky Barrier Diode RoHS Pb *Image for reference only, for details refer to Dimensions-Packag. Description This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175 °C. These diodes series are ideal for applications where improvements in efficiency, reliability, and thermal management are desired.
