Datasheet Details
- Part number
- MBR10200CT
- Manufacturer
- Littelfuse ↗
- File Size
- 599.61 KB
- Datasheet
- MBR10200CT-Littelfuse.pdf
- Description
- 200V Schottky Barrier Rectifier

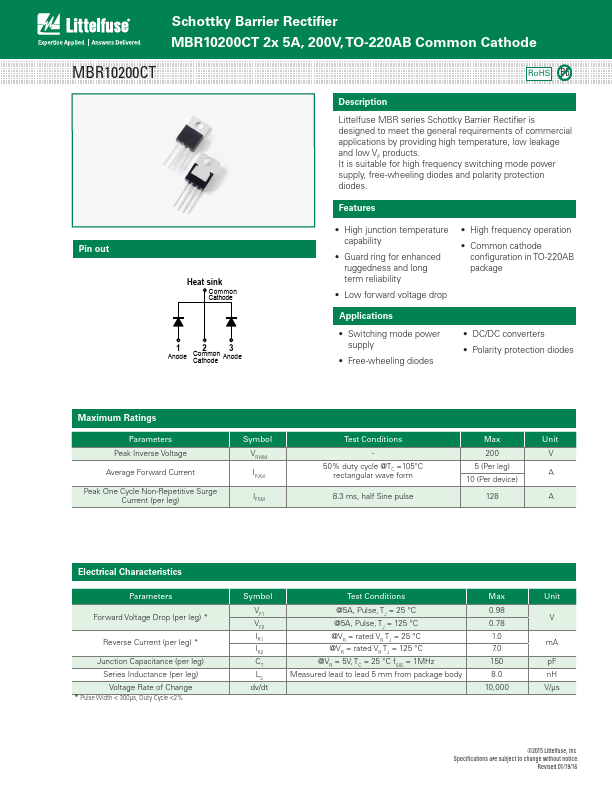

MBR10200CT Description
Schottky Barrier Rectifier MBR10200CT 2x 5A, 200V, TO-220AB Common Cathode MBR10200CT RoHS Pb .
Littelfuse MBR series Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications by providing high temperature.
MBR10200CT Features
* Pin out
Heat sink
Common Cathode
Heat sink
Common Cathode
1
Anode
3
Anode
Pinout 1 D2-PAK & D-PAK Common Cathode
1
Anode
Com2 mon
Cathode
3
Anode
Pinout 2 TO-220AB Common Cathode
Maximum Ratings
* High junction temperature capability
* Guard ring for enhanced ruggedness
