MHP-TAC15-12-90, MHP-TAC15-12-72 Battery Mini-Breakers

Littelfuse

Description

Battery Mini-Breakers Metal Hybrid PPTC > MHP Series MHP-TAC Series Breaker RoHS Circuit Diagram .
The new Metal Hybrid PPTC device, MHP-TAC, offers higher voltage rating (12VDC) and smaller size than typical MHP-TAM devices.

📥 Download Datasheet

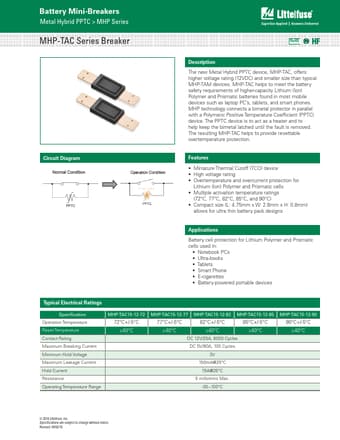

MHP-TAC15-12-90 Datasheet Preview — This datasheet PDF includes multiple part numbers: MHP-TAC15-12-90, MHP-TAC15-12-72. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MHP-TAC15-12-90, MHP-TAC15-12-72
Manufacturer: Littelfuse ↗
File Size: 649.97 KB
Datasheet: MHP-TAC15-12-72-Littelfuse.pdf
Description: Battery Mini-Breakers
Note: This datasheet PDF includes multiple part numbers: MHP-TAC15-12-90, MHP-TAC15-12-72.
Please refer to the document for exact specifications by model.

Features

* Miniature Thermal Cutoff (TCO) device
* High voltage rating
* Overtemperature and overcurrent protection for Lithium (Ion) Polymer and Prismatic cells
* Multiple activation temperature ratings (72°C, 77°C, 82°C, 85°C, and 90°C)
*
