MPTE-5 Silicon Avalanche Diodes

MPTE-5 Description

Silicon Avalanche Diodes 1500 Watt Axial Leaded Transient Voltage Suppressors ICTE/MPTE Series The ICTE/MPTE series 1500 W transient suppressors are d.

MPTE-5 Features

* Stand-off voltage range 5 to 45 Volts
* Uni-directional and Bi-directional
* Glass passivated junction
* Very low clamping voltages
* 100% surge tested MAXIMUM RATING
* Peak Pulse Power (Ppk): 1500 Watts (10 x 1000µs) @25°C (see diagram on page 3 for

📥 Download Datasheet

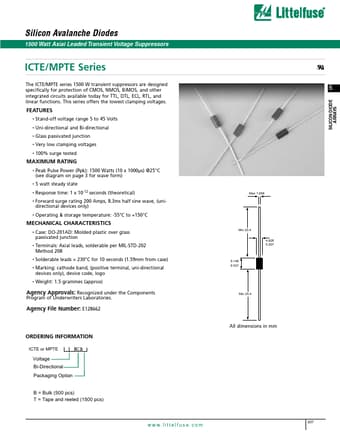

Preview of MPTE-5 PDF
datasheet Preview Page 2
