P0080S4BLRP - 100A SIDACtor Component

Datasheet Summary

Description

The PxxxxS4LRP component series is used to protect equipment such as TV/camera CVBS and/or other low voltage data communication from damaging overvoltage transients.

The series provides a surface mount solution that enables equipment to comply with global regulatory standards.

Features

  • Low voltage overshoot.
  • Low on-state voltage.
  • Does not degrade surge capability after multiple surge events within its ratings.
  • Fails short circuit when surged in excess of ratings.
  • Low capacitance.
  • 4kV 10/700 surge protection capability Applicable Global Standards.
  • TIA-968-A.
  • TIA-968-B.
  • ITU K.20/21 Enhanced Level.
  • ITU K.20/21 Basic Level.
  • GR 1089 Inter-building.

📥 Download Datasheet

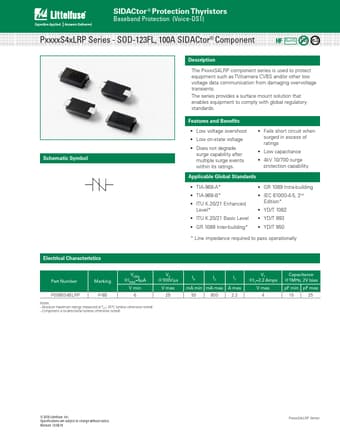

Datasheet preview – P0080S4BLRP

Datasheet Details

Part number P0080S4BLRP
Manufacturer Littelfuse
File Size 616.48 KB
Description 100A SIDACtor Component
Datasheet download datasheet P0080S4BLRP Datasheet
Additional preview pages of the P0080S4BLRP datasheet.

📁 Similar Datasheet

  • P0080S - Thyristor Surge Protection Devices (SEMITECH)
  • P0080S - SIDACtor Device (Teccor Electronics)
  • P0080SA - PROTECTION THYRISTORS (MEI SEMI)
  • P0080SA - Transient Voltage Suppressors (RUILON)
  • P0080SA - Thyristor Surge Suppressors (Brightking)
  • P0080SA - Thyristor Surge Suppressor (HUAAN)
  • P0080SA - Thyristor Surge Suppressors (Semiware)
  • P0080SB - Thyristors (JIEJIE)
  • P0080SB - PROTECTION THYRISTORS (MEI SEMI)
  • P0080SB - Transient Voltage Suppressors (RUILON)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
SIDACtor® Protection Thyristors Baseband Protection (Voice-DS1) PxxxxS4xLRP Series - SOD-123FL, 100A SIDACtor® Component RoHS Pb e3 Schematic Symbol Description The PxxxxS4LRP component series is used to protect equipment such as TV/camera CVBS and/or other low voltage data communication from damaging overvoltage transients. The series provides a surface mount solution that enables equipment to comply with global regulatory standards. Features and Benefits • Low voltage overshoot • Low on-state voltage • Does not degrade surge capability after multiple surge events within its ratings. • Fails short circuit when surged in excess of ratings • Low capacitance • 4kV 10/700 surge protection capability Applicable Global Standards • TIA-968-A* • TIA-968-B* • ITU K.
