P1101SALRP

SIDACtor Protection Thyristors

P1101SALRP Features

* and Benefits t Low voltage overshoot t Low on-state voltage t Does not degrade with use t Fails short circuit when surged in excess of ratings t Integrated diode for positive voltage surges Applicable Global Standards t TIA-968-A t TIA-968-B t GR 1089 Intra-building

* t IEC 61000-4-5

P1101SALRP General Description

Fixed Voltage Series DO-214 are uni-directional SIDACtor® devices designed to protect SLICs (Subscriber Line Interface Circuit) from damaging overvoltage transients. The series provides single line protection using a fixed voltage switching device for negative surges. All positive surges are routed t.

P1101SALRP Datasheet (162.83 KB)

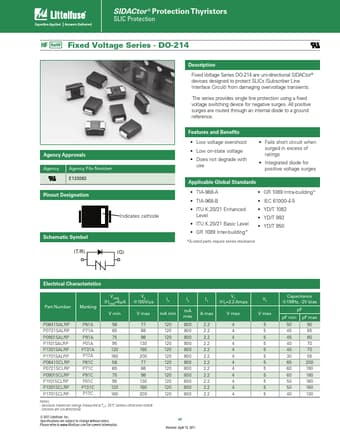

Preview of P1101SALRP PDF

Datasheet Details

Part number:

P1101SALRP

Manufacturer:

Littelfuse ↗

File Size:

162.83 KB

Description:

Sidactor protection thyristors.
SIDACtor® Protection Thyristors SLIC Protection Fixed Voltage Series - DO-214 Agency Approvals Agency Agency File Number E133083 Pinout Designati.
