P1300SDLRP

Protection Thyristors

Littelfuse

P1300SDLRP Features

* Low voltage overshoot

* Low on-state voltage

* Does not degrade surge capability after multiple surge events within limit.

* Fails short circuit when surged in excess of ratings

* 200A 10x1000 Surge Rating

* 1000A 2x10 Surge Rating

P1300SDLRP General Description

The High Surge Current DO-214 Series are SIDACtor® thyristors designed to protect equipment located in hostile environments from overvoltage transients. The series provides a 200A 10/1000 μs rated surface mount solution that enables equipment to comply with enhanced surge requirments now specified .

P1300SDLRP Datasheet (435.41 KB)

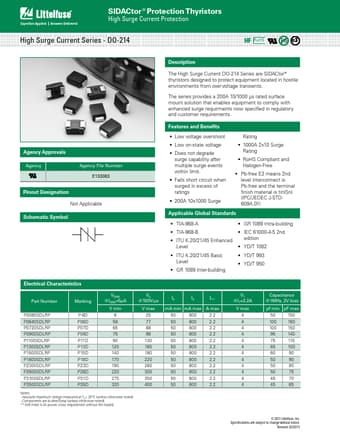

P1300SDLRP Datasheet Preview — Preview of P1300SDLRP PDF

Datasheet Details

Part number:

P1300SDLRP

Manufacturer:

Littelfuse ↗

File Size:

435.41 KB

Description:

Protection thyristors.
SIDACtor® Protection Thyristors High Surge Current Protection High Surge Current Series - DO-214 RoHS Pb e3 Agency Approvals Agency Agency File Nu.
