P1800EB, P1800EA, Protection Thyristors

SIDACtor® Protection Thyristors Baseband Protection (Voice-DS1) SIDACtor® Series - TO-92 Agency Approvals Agency Agency File Number E133083 Pinout.
SIDACtor® Series TO-92 are designed to protect baseband equipment such as modems, line cards, CPE and DSL from damaging overvoltage transients.

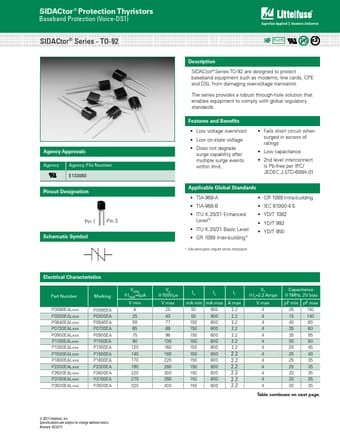

datasheet Preview Page 1 from Datasheet4u.com

P1800EA-Littelfuse.pdf

P1800EB Datasheet Preview — This datasheet PDF includes multiple part numbers: P1800EB, P1800EA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P1800EB, P1800EA

Manufacturer:

Littelfuse ↗

File Size:

496.69 KB

Description:

Protection Thyristors

Note:

This datasheet PDF includes multiple part numbers: P1800EB, P1800EA.
Please refer to the document for exact specifications by model.

Features

* Low voltage overshoot
* Low on-state voltage
* Does not degrade surge capability after multiple surge events within limit.
* Fails short circuit when surged in excess of ratings
* Low capacitance
* 2nd level interconnect is Pb-free per IPC/ JE
