P3100ADL Datasheet - Littelfuse

P3100ADL - High Surge Current Three-pin SIDACtor Device

SIDACtor Devices High Surge Current Three-pin SIDACtor® Device RoHS 1 This SIDACtor device is a 1000 A solid state protection device offered in a TO-220 package.

(T) 2 It protects equipment located in the severe surge environment of CATV (Community 3 (G) Antenna TV) systems and antenna locations.

(R) Electrical Parameters Part Number P6002ADL VDRM Volts 550 VS Volts 700 VT Volts 5.5 IDRM µAmps 5 IS mAmps 800 IT Amps 2.2 “L” in part number indicates RoHS compliance.

For non

P3100ADL-Littelfuse.pdf

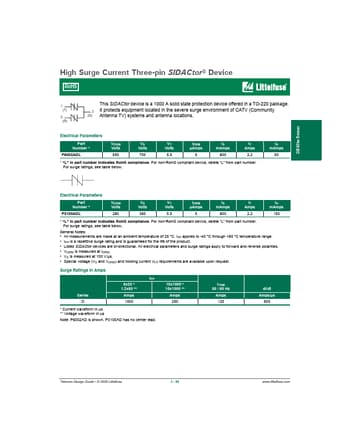

Preview of P3100ADL PDF
P3100ADL Datasheet Preview Page 2 P3100ADL Datasheet Preview Page 3

Datasheet Details

Part number:

P3100ADL

Manufacturer:

Littelfuse ↗

File Size:

139.52 KB

Description:

High surge current three-pin sidactor device.
