P3800FNL, P0640 - Protection Thyristors

Littelfuse

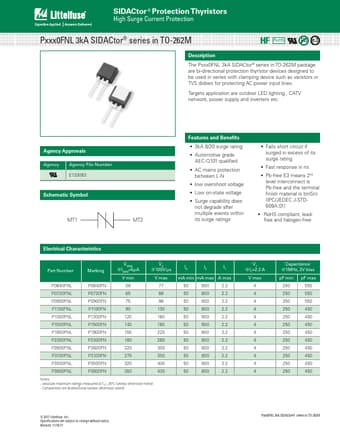

P3800FNL Datasheet Preview — This datasheet PDF includes multiple part numbers: P3800FNL, P0640. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	P3800FNL, P0640
Manufacturer	Littelfuse ↗
File Size	1.89 MB
Description	Protection Thyristors
Datasheet	P0640-FNL.pdf
Note	This datasheet PDF includes multiple part numbers: P3800FNL, P0640. Please refer to the document for exact specifications by model.

P3800FNL Product details

Description

The Pxxx0FNL 3kA SIDACtor® series in TO-262M package are bi-directional protection thyristor devices designed to be used in series with clamping device such as varistors or TVS didoes for protecting AC power input lines.

Features

3kA 8/20 surge rating.
Automotive grade AEC-Q101 qualified.
AC mains protection between L-N.
low overshoot voltage.
Low on-state voltage.
Surge capability does not degrade after multiple events within its surge ratings.
Fails short circuit if surged in excess of its surge rating.
Fast response in ns.
Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC.
