P6KE12CA Datasheet - Littelfuse

P6KE12CA TVS Diodes

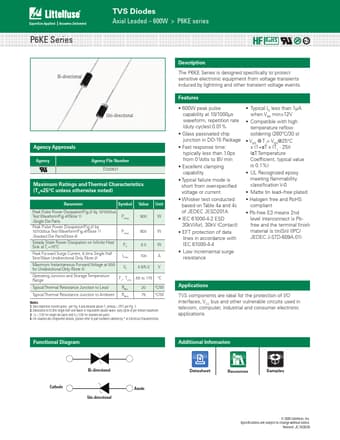

P6KE Series TVS Diodes Axial Leaded 600W > P6KE series RoHS Pb e3 Bi-directional Uni-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4)(Note 1) PPPM -Single Die Parts Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4)(Note 1) PPPM -Stacked Die Parts(Note 4) Steady .

P6KE12CA Features

* 600W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%

* Glass passivated chip junction in DO-15 Package

* Fast response time: typically less than 1.0ps from 0 Volts to BV min

* Excellent clamping capability

* Typical failure

P6KE12CA Datasheet (969.01 KB)
