PESD0402-140 - ESD Protector

Datasheet Summary

Features

0.25 pF (typ) Capacitance.
Low leakage current.
Low clamping voltage.
Fast response time (.

Littelfuse

📥 Download Datasheet

Datasheet Details

Part number	PESD0402-140
Manufacturer	Littelfuse
File Size	755.67 KB
Description	ESD Protector
Datasheet	PESD0402-140 Datasheet
Additional preview pages of the PESD0402-140 datasheet.

📁 Similar Datasheet

PESD0402-140 - ESD Suppressor (YENJI)
PESD0402-050 - ESD Suppressor (YENJI)
PESD0402-060 - ESD Protector (Tyco)
PESD0402-240 - ESD Suppressor (YENJI)
PESD0542U015 - ESD Protection Devices (Leiditech)
PESD05BULC - ULTRA low capacitance TVS ARRAY (ProTek Devices)
PESD05NFA - TVS Diode (Leiditech)
PESD0603-140 - ESD Protector (Tyco)
PESD0603AV12 - ESD Protection Devices (Leiditech)
PESD0603V24 - ESD (DOWOSEMI)

Other Datasheets by Littelfuse

PESD0603-240 - ESD Protector

Full PDF Text Transcription

Click to expand full text

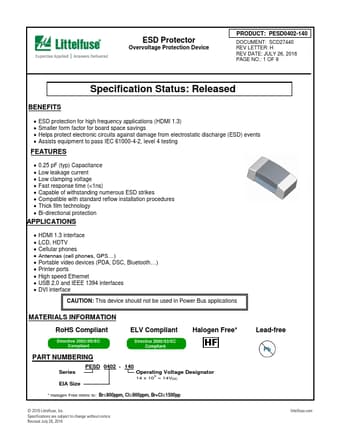

ESD Protector Overvoltage Protection Device PRODUCT: PESD0402-140 DOCUMENT: SCD27440 REV LETTER: H REV DATE: JULY 26, 2016 PAGE NO.: 1 OF 9 Specification Status: Released BENEFITS  ESD protection for high frequency applications (HDMI 1.3)  Smaller form factor for board space savings  Helps protect electronic circuits against damage from electrostatic discharge (ESD) events  Assists equipment to pass IEC 61000-4-2, level 4 testing FEATURES  0.25 pF (typ) Capacitance  Low leakage current  Low clamping voltage  Fast response time (<1ns)  Capable of withstanding numerous ESD strikes  Compatible with standard reflow installation procedures  Thick film technology  Bi-directional protection APPLICATIONS  HDMI 1.
