Q4006DH3, Q4006L3, Triac

Thyristors 6 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs Lxx06xx & Qxx06xx & Qxx06xHx Series RoHS .
This 6 Amp bidirectional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature mod.

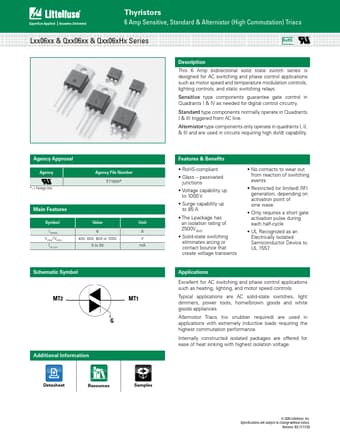

datasheet Preview Page 1 from Datasheet4u.com

Q4006L3-Littelfuse.pdf

Q4006DH3 Datasheet Preview — This datasheet PDF includes multiple part numbers: Q4006DH3, Q4006L3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Q4006DH3, Q4006L3

Manufacturer:

Littelfuse ↗

File Size:

797.82 KB

Description:

Triac

Note:

This datasheet PDF includes multiple part numbers: Q4006DH3, Q4006L3.
Please refer to the document for exact specifications by model.

Features

* Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 6 400, 600, 800 or 1000 5 to 50 Unit A V mA Schematic Symbol MT2 MT1 G Additional Information Features & Benefits
* RoHS-compliant
* Glass
* passivated junctions
* Voltage capability up to 1000 V
* Surge cap

Applications

* such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Sensitive type components guarantee gate control in Quadrants I & IV as needed for digital control circuitry. Standard type components normally operate in Quadrants I & III triggered from AC line
