Q4006L3

Triac

Littelfuse

Q4006L3 Datasheet (797.82 KB)

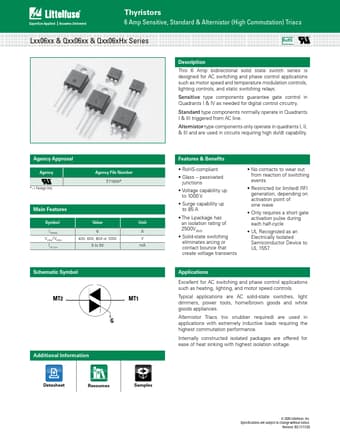

Q4006L3 Datasheet Preview — Preview of Q4006L3 PDF

Datasheet Details

Part number:

Q4006L3

Manufacturer:

Littelfuse ↗

File Size:

797.82 KB

Description:

Triac.

Q4006L3 Features

* Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 6 400, 600, 800 or 1000 5 to 50 Unit A V mA Schematic Symbol MT2 MT1 G Additional Information Features & Benefits

* RoHS-compliant

* Glass

* passivated junctions

* Voltage capability up to 1000 V

* Surge cap

Q4006L3 General Description

This 6 Amp bidirectional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Sensitive type components guarantee gate control in Quadrants I & IV as needed for d.
