Q4025KH6, Q4025L5 Triac

Q4025KH6 Description

Thyristors 25 Amp Standard & Alternistor (High Commutation) Triacs Qxx25xx & Qxx25xHx Series RoHS .
This 25 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature m.

Q4025KH6 Features

* Symbol IT(RMS) VDRM/ VRRM IGT Value 25 1000 50 or 80 Schematic Symbol Unit A V mA Features & Benefits
* RoHS compliant
* Glass
* passivated junctions
* Voltage capability up to 1000 V

Q4025KH6 Applications

* such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard alternistor triac components operate with inphase signals in Quadrants I or III and ONLY unipolar negative gate pulses for Quadrant II or III. The alternistor triac will not operate in Q

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: Q4025KH6, Q4025L5. Please refer to the document for exact specifications by model.

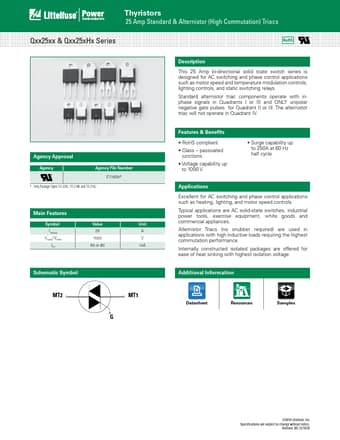

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
Q4025KH6, Q4025L5
Manufacturer
Littelfuse ↗
File Size
0.97 MB
Datasheet
Q4025L5-Littelfuse.pdf
Description
Triac
Note
This datasheet PDF includes multiple part numbers: Q4025KH6, Q4025L5.
Please refer to the document for exact specifications by model.
