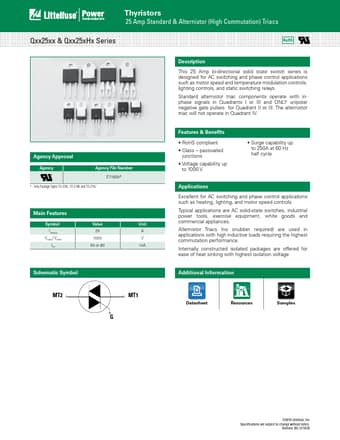

Q4025P6 Datasheet - Littelfuse

Q4025P6 Triac

This 25 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard alternistor triac components operate with in-phase signals in Quadrants I.

Q4025P6 Features

* Symbol IT(RMS) VDRM/ VRRM IGT Value 25 1000 50 or 80 Schematic Symbol Unit A V mA MT2 MT1 G Features & Benefits

* RoHS compliant

* Glass

* passivated junctions

* Voltage capability up to 1000 V

* S urge capability up to 250A at 60 Hz half cycle A
