Q6016LH4, Q6015L5 - Triac

Littelfuse

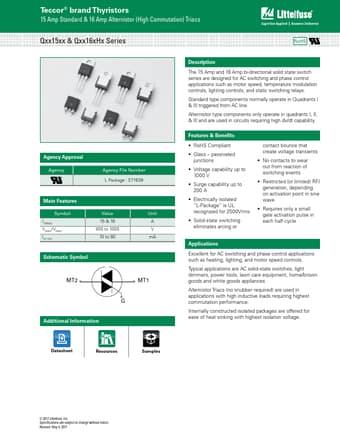

Q6016LH4 Datasheet Preview — This datasheet PDF includes multiple part numbers: Q6016LH4, Q6015L5. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	Q6016LH4, Q6015L5
Manufacturer	Littelfuse ↗
File Size	593.04 KB
Description	Triac
Datasheet	Q6015L5-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: Q6016LH4, Q6015L5. Please refer to the document for exact specifications by model.

Q6016LH4 Product details

Description

The 15 Amp and 16 Amp bi-directional solid state switch series are designed for AC switching and phase control applications such as motor speed, temperature modulation controls, lighting controls, and static switching relays.

Features

Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 15 & 16 400 to 1000 10 to 80 Schematic Symbol Unit A V mA MT2 Additional Information MT1 G.
