Q8006DH3

Triac

Littelfuse

Q8006DH3 Features

* Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 6 400, 600, 800 or 1000 5 to 50 Unit A V mA Schematic Symbol MT2 MT1 G Additional Information Features & Benefits

* RoHS-compliant

* Glass

* passivated junctions

* Voltage capability up to 1000 V

* Surge cap

Q8006DH3 General Description

This 6 Amp bidirectional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Sensitive type components guarantee gate control in Quadrants I & IV as needed for d.

Q8006DH3 Datasheet (797.82 KB)

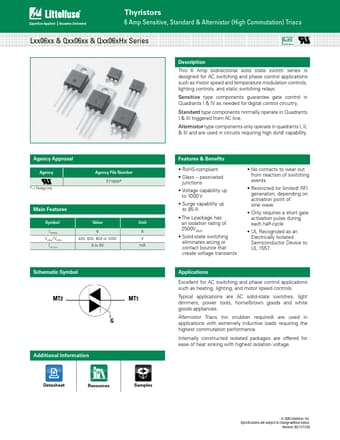

Q8006DH3 Datasheet Preview — Preview of Q8006DH3 PDF

Datasheet Details

Part number:

Q8006DH3

Manufacturer:

Littelfuse ↗

File Size:

797.82 KB

Description:

Triac.
