Q8010NH5, Q8010L4, Triac

Qxx10xx & Qxx10xHx Series 10 Amp Standard & Alternistor (High Commutation) Triacs Thyristor Datasheet RoHS .
The Qxx10xx and Qxx10xHx Series are 10 Amp bi-directional solid state switches.

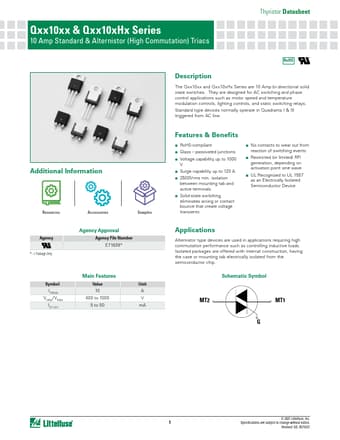

Q8010L4-Littelfuse.pdf

Q8010NH5 Datasheet Preview — This datasheet PDF includes multiple part numbers: Q8010NH5, Q8010L4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Q8010NH5, Q8010L4

Manufacturer:

Littelfuse ↗

File Size:

469.71 KB

Description:

Triac

Note:

This datasheet PDF includes multiple part numbers: Q8010NH5, Q8010L4.
Please refer to the document for exact specifications by model.

Features

* Value 10 400 to 1000 5 to 50 Unit A V mA Features & Benefits
* RoHS-compliant
* Glass
* passivated junctions
* Voltage capability up to 1000 V
* Surge capability up to 120 A
* 2500Vrms min. isolation between mounting tab and active terminals
* Solid-state switchin

Applications

* such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Standard type devices normally operate in Quadrants I & III triggered from AC line. Additional Information Resources Agency
* - L Package Only Accessories Samples Agency Approval Agency
