QV6025NH4 25A High Temperature Alternistor TRIAC

This 25 A high temperature Alternistor TRIAC, offered in TO-220AB, TO-220 isolated, and TO-263 packages, has 150 °C maximum junction temperature (Tvj) and 250 A ITSM (60 Hz). This series enables easier thermal management and higher surge handling capability in AC power control applications such as h.

QV6025NH4 Features

* Blocking voltage up to 800 V

* Surge current capability of 250 A at 60 Hz half cycle

* Mechanically and thermally robust TO-220 clip-attach assembly

* High dv/dt up to 2000 V/μs for improved noise immunity

* 3Q technology for high commutation capability

* Internally-isolat

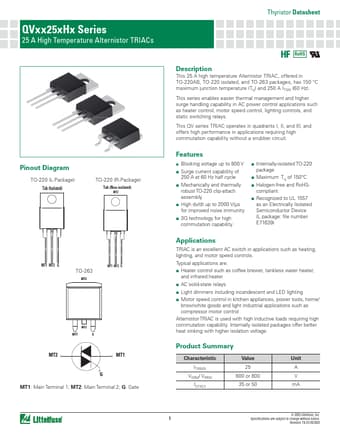

QV6025NH4 Datasheet (716.56 KB)
