SA100AG - Zener Transient Voltage Suppressors

Product Overview

Littelfuse

📥 Download Datasheet

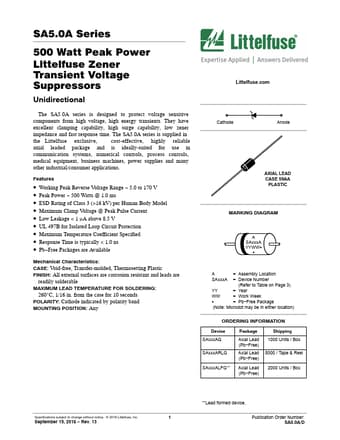

SA100AG Zener Transient Voltage Suppressors by Littelfuse - Datasheet Preview — Datasheet preview – SA100AG

Datasheet Details

Part number	SA100AG
Manufacturer	Littelfuse
File Size	316.39 KB
Description	Zener Transient Voltage Suppressors
Datasheet	SA100AG Datasheet
Additional preview pages of the SA100AG datasheet.

Product details

Features

Working Peak Reverse Voltage Range.
5.0 to 170 V.
Peak Power.
500 Watts @ 1.0 ms.
ESD Rating of Class 3 (>16 kV) per Human Body Model.
Maximum Clamp Voltage @ Peak Pulse Current.
Low Leakage < 1 mA above 8.5 V.
UL 497B for Isolated Loop Circuit Protection.
Maximum Temperature Coefficient Specified.
Response Time is typica.
