SA28ARLG, SA20ARLG Zener Transient Voltage Suppressors

SA28ARLG Description

SA5.0A Series 500 Watt Peak Power Littelfuse Zener Transient Voltage Suppressors Unidirectional The SA5.0A series is designed to protect voltage sen.

SA28ARLG Features

* Working Peak Reverse Voltage Range
* 5.0 to 170 V
* Peak Power
* 500 Watts @ 1.0 ms
* ESD Rating of Class 3 (>16 kV) per Human Body Model
* Maximum Clamp Voltage @ Peak Pulse Current
* Low Leakage < 1 mA above 8.5 V
* UL 497B for Isol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA28ARLG, SA20ARLG. Please refer to the document for exact specifications by model.

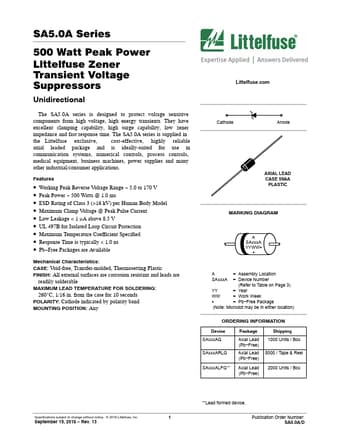

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA28ARLG, SA20ARLG
Manufacturer
Littelfuse ↗
File Size
316.39 KB
Datasheet
SA20ARLG-Littelfuse.pdf
Description
Zener Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SA28ARLG, SA20ARLG.
Please refer to the document for exact specifications by model.
