SA5.0G Zener Transient Voltage Suppressors

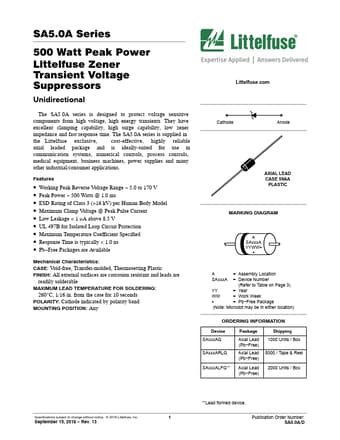

SA5.0A Series 500 Watt Peak Power Littelfuse Zener Transient Voltage Suppressors Unidirectional The SA5.0A series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SA5.0A series is supplied in the Littelfuse exclusive, cost-effective, highly reliable axial leaded package and is ideally-suited for use in communication systems, numeri.

SA5.0G Features

* Working Peak Reverse Voltage Range

* 5.0 to 170 V

* Peak Power

* 500 Watts @ 1.0 ms

* ESD Rating of Class 3 (>16 kV) per Human Body Model

* Maximum Clamp Voltage @ Peak Pulse Current

* Low Leakage < 1 mA above 8.5 V

* UL 497B for Isol
