SC7538-08UTG - Low Capacitance ESD Protection

Datasheet Summary

Description

The SC7538 integrates 8 channels of ultra low capacitance rail-torail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD).

Features

  • & Benefits.
  • ESD, IEC 61000-4-2, ±22kV contact, ±30kV air.
  • EFT, IEC 61000-4-4, 40A (tP=5/50ns).
  • Surge Tolerance, IEC 61000-45 2nd edition, 3A (tP=8/20μs).
  • Low capacitance of 0.3pF @0V, 3GHz (TYP) per I/O.
  • Low leakage current of 0.5μA (MAX) at 5V.
  • Halogen free, Lead free and RoHS compliant.

📥 Download Datasheet

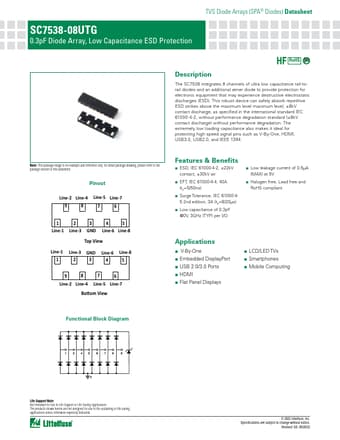

Datasheet preview – SC7538-08UTG
