SD05C-01FTG, SD05C - 450W Discrete Bidirectional TVS Diode

Littelfuse

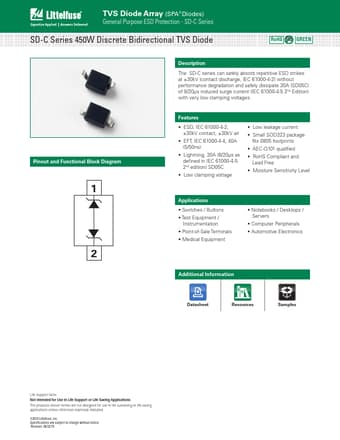

SD05C-01FTG Datasheet Preview — This datasheet PDF includes multiple part numbers: SD05C-01FTG, SD05C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SD05C-01FTG, SD05C
Manufacturer	Littelfuse ↗
File Size	781.09 KB
Description	450W Discrete Bidirectional TVS Diode
Datasheet	SD05C_Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SD05C-01FTG, SD05C. Please refer to the document for exact specifications by model.

SD05C-01FTG Product details

Description

The SD-C series can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation and safely dissipate 30A (SD05C) of 8/20μs induced surge current (IEC 61000-4-5 2nd Edition) with very low clamping voltages.

Features

ESD, IEC 61000-4-2, ±30kV contact, ±30kV air.
EFT, IEC 61000-4-4, 40A (5/50ns).
Lightning, 30A (8/20μs as defined in IEC 61000-4-5 2nd edition) SD05C.
Low clamping voltage.
Low leakage current.
Small SOD323 package fits 0805 footprints.
AEC-Q101 qualified.
RoHS Compliant and Lead Free.
Moisture Sensitivity Level.
