SJ4010D1, SJ4010VS2 - Thyristors

Littelfuse

SJ4010D1 Datasheet Preview — This datasheet PDF includes multiple part numbers: SJ4010D1, SJ4010VS2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SJ4010D1, SJ4010VS2
Manufacturer	Littelfuse ↗
File Size	1.19 MB
Description	Thyristors
Datasheet	SJ4010VS2-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SJ4010D1, SJ4010VS2. Please refer to the document for exact specifications by model.

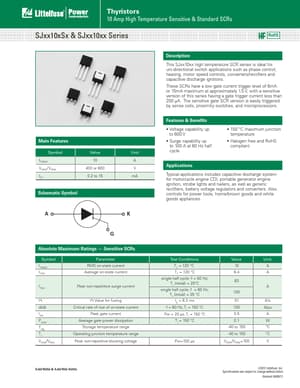

SJ4010D1 Product details

Description

This SJxx10xx high temperature SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions.

Features

Symbol IT(RMS) VDRM/ VRRM IGT Value 10 400 or 600 0.2 to 15 Schematic Symbol A Unit A V mA K.
