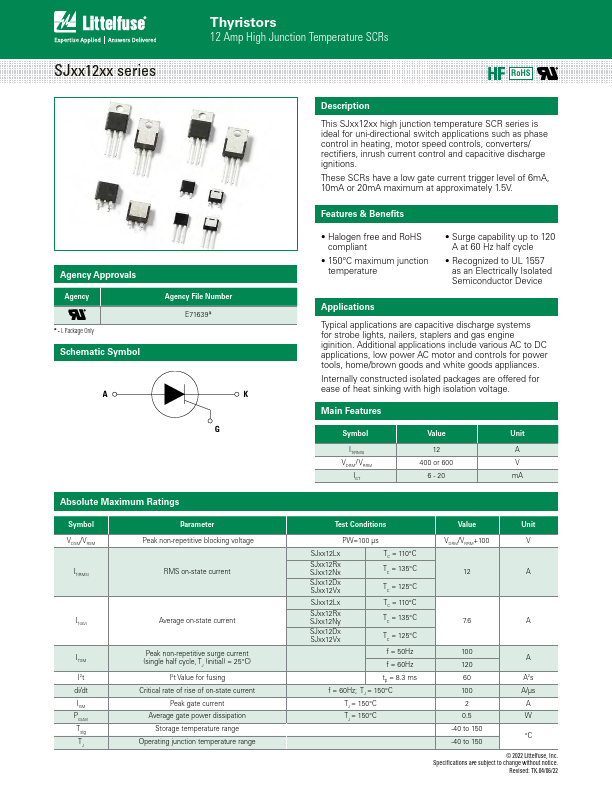

SJ6012D1TP, SJ6012R1TP - 12Amp High Junction Temperature SCR

Littelfuse

SJ6012D1TP Datasheet Preview — This datasheet PDF includes multiple part numbers: SJ6012D1TP, SJ6012R1TP. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SJ6012D1TP, SJ6012R1TP
Manufacturer	Littelfuse ↗
File Size	497.11 KB
Description	12Amp High Junction Temperature SCR
Datasheet	SJ6012R1TP-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SJ6012D1TP, SJ6012R1TP. Please refer to the document for exact specifications by model.

SJ6012D1TP Product details

Description

This SJxx12xx high junction temperature SCR series is ideal for uni-directional switch applications such as phase control in heating, motor speed controls, converters/ rectifiers, inrush current control and capacitive discharge ignitions.

Features

& Benefits.
Halogen free and RoHS compliant.
150°C maximum junction temperature.
Surge capability up to 120 A at 60 Hz half cycle.
Recognized to UL 1557 as an Electrically Isolated Semiconductor Device.
