SMAJ250A Datasheet - Littelfuse

SMAJ250A 400W TVS Diodes

The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Uni-directional Bi-directional Additional Information Resources Accessories Samples Maximum Ratings and Thermal Characteristics (.

SMAJ250A Features

* 400W Peak Pulse Power capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%

* Excellent clamping capability

* Typical IR less than 1μA when VBR min>12V

* Surface mount footprint for compact PCB layout

* Low profile package

* Typical failure mode is short fr

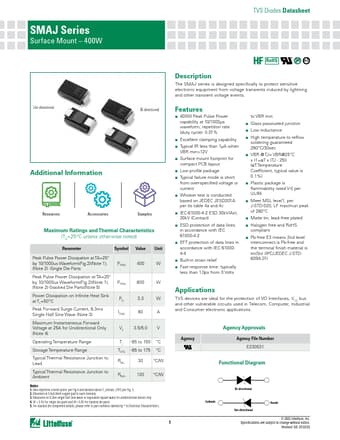

SMAJ250A Datasheet (841.39 KB)
