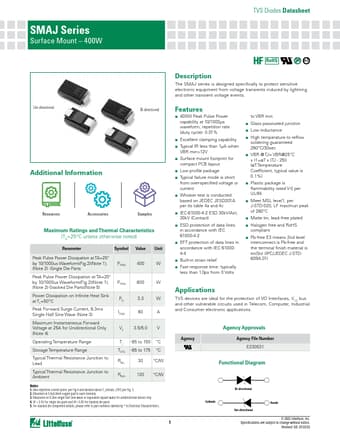

Description
The SMAJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Features
- 400W Peak Pulse Power capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
- Excellent clamping capability.
- Typical IR less than 1μA when VBR min>12V.
- Surface mount footprint for compact PCB layout.
- Low profile package.
- Typical failure mode is short from over-specified voltage or current.
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c.
- IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact).
- ESD protection of data lin.
