SMBJ10, SMBJ5.0 Datasheet - Littelfuse

SMBJ10, SMBJ5.0, TVS Diode

SMBJ Series TVS Diodes Surface Mount * 600W > SMBJ series RoHS Pb e3 Uni-directional .
The SMBJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient vo.

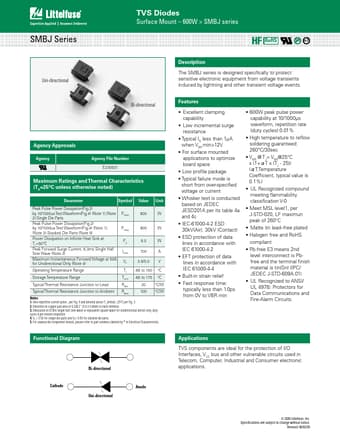

datasheet Preview Page 1 from Datasheet4u.com

SMBJ5.0-Littelfuse.pdf

SMBJ10 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMBJ10, SMBJ5.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMBJ10, SMBJ5.0

Manufacturer:

Littelfuse ↗

File Size:

972.08 KB

Description:

TVS Diode

Note:

This datasheet PDF includes multiple part numbers: SMBJ10, SMBJ5.0.
Please refer to the document for exact specifications by model.

Features

* Excellent clamping capability
* Low incremental surge resistance
* Typical IR less than 1μA when VBR min>12V

Applications

* to optimize board space
* Low profile package
* Typical failure mode is short from over-specified voltage or current
* Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
* IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
* ESD protection
