SMBJ11CA-HR Transient Voltage Suppression Diodes

SMBJ-HR Series Transient Voltage Suppression Diodes Surface Mount 600W > SMBJ-HR Series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals AGENCY AGENCY FILE NUMBER E128662/E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Peak Pulse Power Dissipation at (TFAi=g2.25)º(NCobtye 10/1000µs Waveform 1), (Note 2) PPPM Power Dissipation on Infinite Heat Sink at TL=50OC Peak Forward Surge Current, 8.3ms Single Half Sin.

SMBJ11CA-HR Features

* Excellent clamping capability

* Low incremental surge resistance

* Typical 11.10V IR ≤ 1µA for VR >

* SMT for minimal board footprint

* Low profile package

* Typical failure mode is short from over-specified voltage or current

SMBJ5.0A-HR-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SMBJ11CA-HR, SMBJ5.0A-HR. Please refer to the document for exact specifications by model.

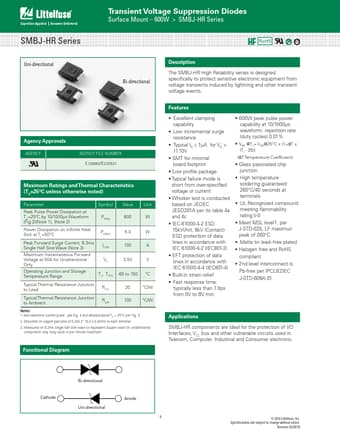

SMBJ11CA-HR Datasheet Preview Page 2 SMBJ11CA-HR Datasheet Preview Page 3
