SMBJ51CA-HRA, SMBJ5.0A-HRA - Transient Voltage Suppression Diodes

Littelfuse

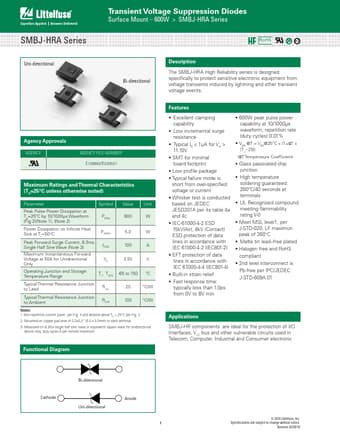

SMBJ51CA-HRA Datasheet Preview — This datasheet PDF includes multiple part numbers: SMBJ51CA-HRA, SMBJ5.0A-HRA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SMBJ51CA-HRA, SMBJ5.0A-HRA
Manufacturer	Littelfuse ↗
File Size	1.26 MB
Description	Transient Voltage Suppression Diodes
Datasheet	SMBJ5.0A-HRA-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: SMBJ51CA-HRA, SMBJ5.0A-HRA. Please refer to the document for exact specifications by model.

SMBJ51CA-HRA Product details

Description

The SMBJ-HRA High Reliability series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

Excellent clamping capability.
Low incremental surge resistance.
Typical 11.10V IR ≤ 1µA for VR >.
SMT for minimal board footprint.
Low profile package.
Typical failure mode is short from over-specified voltage or current.
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c.
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact) ESD protection of data lines in accordance with IEC 61000-4-2 (.
