SMBJ90CA-HRA - Transient Voltage Suppression Diodes

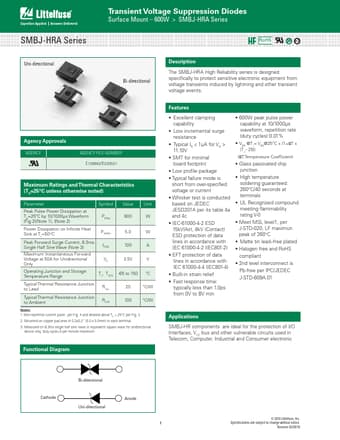

SMBJ-HRA Series Transient Voltage Suppression Diodes Surface Mount 600W > SMBJ-HRA Series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals AGENCY AGENCY FILE NUMBER E128662/E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Peak Pulse Power Dissipation at (TFAi=g2.25)º(NCobtye 10/1000µs Waveform 1), (Note 2) PPPM Power Dissipation on Infinite Heat Sink at TL=50OC Peak Forward Surge Current, 8.3ms Single Half S

SMBJ90CA-HRA Features

* Excellent clamping capability

* Low incremental surge resistance

* Typical 11.10V IR ≤ 1µA for VR >

* SMT for minimal board footprint

* Low profile package

* Typical failure mode is short from over-specified voltage or current

SMBJ5.0A-HRA-Littelfuse.pdf
