SMDJ5.0CA Transient Voltage Suppression Diodes

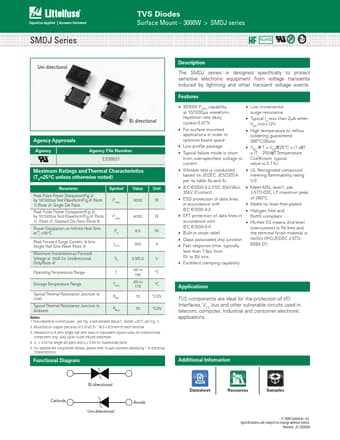

SMDJ Series TVS Diodes Surface Mount 3000W > SMDJ series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4) (Note 1),(Note 2) -Single Die Parts Peak Pulse Power Dissipation(Fig.2) by 10/1000us Test Waveform(Fig.4) (Note 1), (Note 2) -Stacked Die Parts (Note 5) Symbol PPPM PPPM Val.

SMDJ5.0CA Features

* 3000W PPPM capability at 10/1000μs waveform,

* Low incremental surge resistance repetition rate (duty cycles):0.01%

* For surface mounted applications in order to optimize board space

* Typical IR less than 2μA when VBR min>12V

* High temperature to refl
