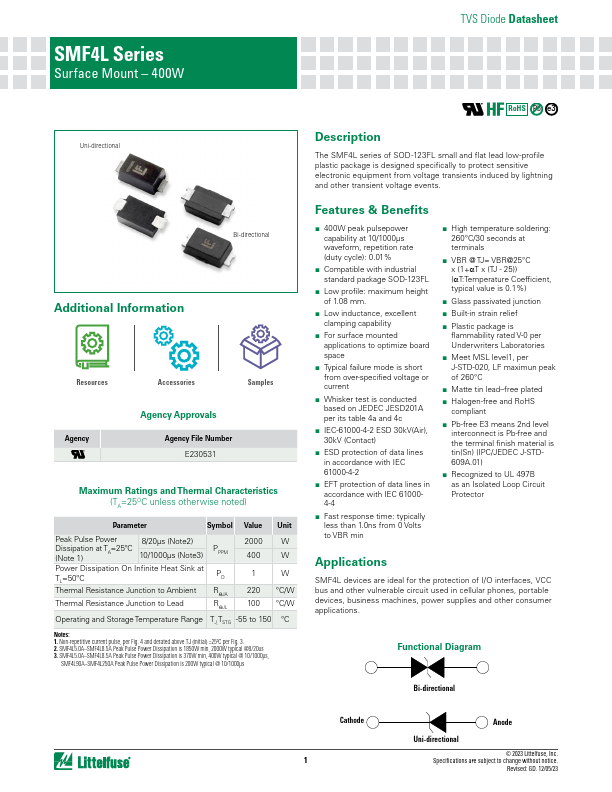

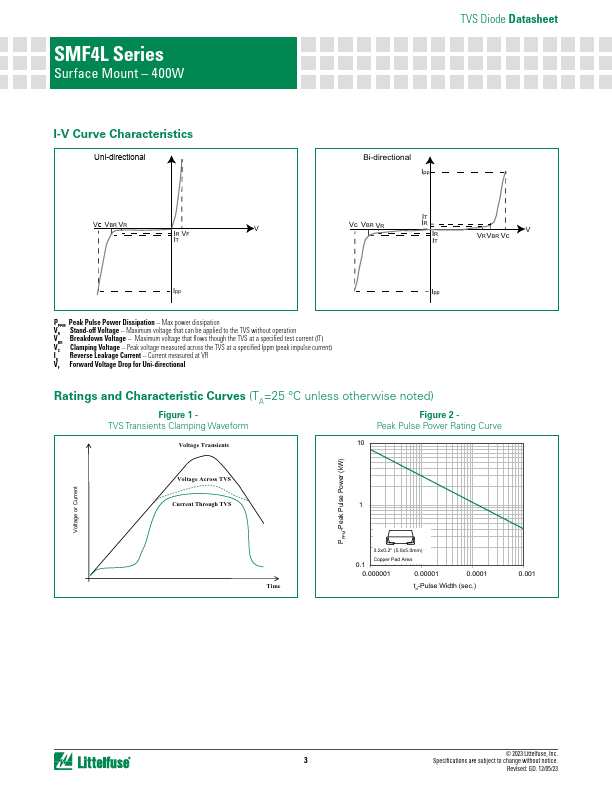

SMF4L Series Surface Mount 400W TVS Diode Datasheet RoHS Pb e3 Uni-directional Bi-directional Additional Information Resources Agency Accessories Samples Agency Approvals Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power 8/20μs (Note2) Dissipation at TA=25ºC (Note 1) 10/1000μs (Note3) PPPM Power Dissipation On Infinite Heat Sink at TL=50ºC PD Thermal Resistance Junction

SMF4L10A Features

* & Benefits

* 400W peak pulsepower capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%

* Compatible with industrial standard package SOD-123FL

* Low profile: maximum height of 1.08 mm.

* Low inductance, excellent clamping capability

* For surface mounted app

SMF4L5.0A-Littelfuse.pdf
